Mapping the tantalum supply chain
When he was approached by a mining company in 2016, Circulor CEO and co-founder Doug Johnson-Poensgen had never heard of tantalum himself. But he soon learned everyone from miners in Africa to electric car makers in California has a stake in the mineral.
For example, consumers don’t want their purchases to support slave labor. Developing countries don’t want their exports tainted and export revenues diminished. Consumer electronics makers want to report their supply chains are clear. But African mining companies don’t want to pay all the costs of compliance by themselves.
At the time, Rwandan mines were already using the best tracing methods available: tagging materials and filling in paper forms. This met the letter of the OECD rules but didn’t provide actual traceability. It generated a costly mountain of paper with room for errors or fraud.
Circulor’s team started by mapping every step of the supply chain for tantalum from mine to manufacturer. They realized a blockchain could streamline those steps, but they faced the classic problem of “garbage in, garbage out.”
Any transaction is tamper-proof once it’s written to the blockchain. But that transaction is only as reliable as the original input.
“A blockchain will record an immutable record of custody of a material, the locations it’s traveled through, its composition over time, and all that,” says Circulor’s Johnson-Poensgen. “But if you’re trying to make sure the wrong material never enters the system in the first place, you need processes to make this work.”
You need to tightly control the raw material on the ground to provide accurate data for the blockchain.
Creating foolproof new processes
After the supply chain was mapped, out went the paper checklists and in came new online procedures. With scanners, sensors, weigh scales, and smartphones, these generate reliable data at each step of the global supply chain.
Tantalum goes through many transformations: from gray pebbles, it’s refined to a powder, and then formed into capacitors that are glued to circuit boards and popped into smartphones, laptops, and even electric cars.
“This isn’t a simple track and trace. It’s complicated, because we start with ore and end up with smartphones,” notes Johnson-Poensgen. “Food traceability is much simpler. A banana doesn’t change into a diamond halfway through its journey to a consumer.”
The Circulor team wanted a tamper-proof blockchain as the secure repository for all the system data, but it had to be easy to use by anyone with a smartphone.
To meet these challenges, Circulor created some unique procedures, including the facial recognition system they call URU. The results of each scan are recorded on the blockchain.
And Circulor tracks the ore from mine through refinery with smart contracts.
“The Circulor Protocol is the family of smart contracts that connect one segment of the supply chain to another through a material-processing step,” explains Johnson-Poensgen. “It’s the glue that hold all the different steps together.
“Our system provides both chain of custody and tracing of materials,” he says. “The aim is to use blockchain technology to drive out costs as well as dramatically improve traceability.”
This means manufacturers like Apple and HP will finally have all the proof they need to report to regulators with confidence and to label their products “conflict-free” for consumers.
“Regulations are one thing. The problem was, no one had a foolproof way to prove where their tantalum came from. Until now.”

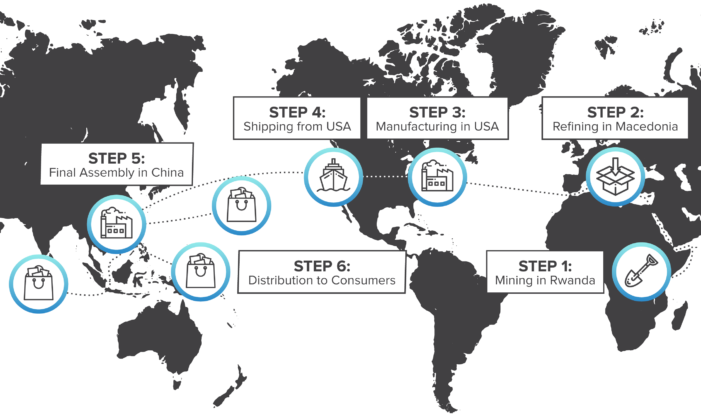

Step 1: Mining in Rwanda
Everyone entering a mine or selling a bag of ore has their photo taken and ID card scanned with a smartphone. The photos must match the image on file in the Circulor facial recognition system.
Bags of ore are grouped into 70-kg (150-pound) sacks, each with a tamper-proof QR or NFC tag attached. Using GPS, the tags show exactly where that sack comes from. Tags are scanned as sacks are shipped to Kigali, the capital of Rwanda, and on to refineries.
Step 2: Refining in Macedonia
Sacks of ore are weighed before being mixed together. After the ore is refined into powder, the output must equal the weight of the input in a mass balance check.
The refined ore is sealed into trackable containers scanned with a smartphone every time they’re loaded or unloaded from ships or trucks.
Step 3: Manufacturing in USA
The refined tantalum is shipped to a manufacturer. Again, the inputs to each step are weighed and compared with the outputs. Finished batches of capacitors are tagged with GPS or RFID tags.
Step 4: Shipping from USA
Tagged batches of capacitors are scanned with smartphones throughout their journey. Each movement is recorded on the blockchain.
Step 5: Final Assembly in China
Capacitors are glued onto circuit boards assembled into final products. Each product receives a unique serial number. Third-party logistics systems certify the product’s origin, provenance, and ethical sourcing, all recorded on the blockchain.
Step 6: Distribution to consumers
Finished products are shipped to distribution points for consumers around the world. The serial number can be used to trace the materials that went into that product.

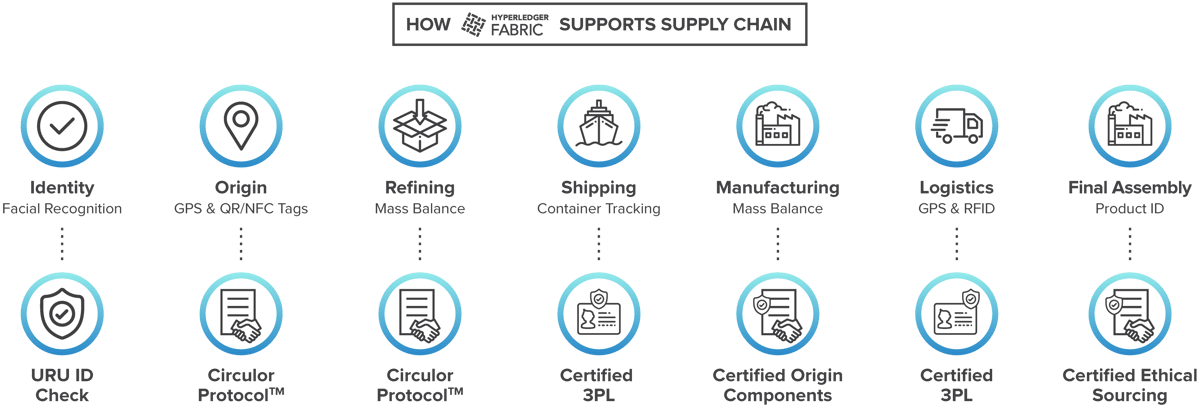

Mineral Traceability from Mine to Manufacturer
Why choose Hyperledger Fabric?
“We did a first proof of concept on Ethereum, because it was relatively easy to build,” says Johnson-Poensgen. But he figured Ethereum’s slow transaction speed and unpredictable costs—driven by the changing price of “gas”—would turn off corporate clients.
His team evaluated R3’s Corda as well. “My view is that Corda was obviously developed for financial services,” he says, so it wasn’t a good fit either.
“We had to convince mining firms, chemical refiners in China, and consumer electronics companies in California that this was the right platform. So we needed a demonstrably cross-industry solution, not something three PhD students came up with in their garage.”
That’s why Circulor chose Hyperledger Fabric for its second proof of concept and for the production system.
“Hyperledger Fabric has a reputation as an enterprise-class platform,” notes Johnson-Poensgen. “In all the business conversations we’ve had, nobody has ever questioned our choice of blockchain platform.”
On top of Hyperledger Fabric, Circulor built an enterprise application with two interfaces:
- The mobile apps for checking IDs, scanning QR codes at checkpoints, and downloading required documents
- The desktop version that runs in corporate offices to provide supply chain visibility and answers to queries
The system databases are hosted in the cloud through a combination of Oracle Cloud and Amazon Web Services.
Proving the system in production
In fall 2018, the system went live smoothly at three mines in Rwanda and a refinery in Macedonia run by Power Resources Group (PRG). Several hundred transactions a day support these operations. As more mines come online, Circulor expects to reach several thousand transactions a day, well within system capabilities.
“What’s really appealing to our company is that the blockchain system works alongside our existing due diligence and compliance programs. We haven’t had to overhaul our procedures,” says Ray Power, CEO of PRG. “So we’re getting a lot of traceability for very little extra work.”
Under an agreement with the Rwandan government, PRG is building a refinery near Kigali to eventually process 120 metric tonnes of ore a month.
“PRG is investing in near-source refining operations that will improve provenance, sustainability, and safety,” notes Power. “Our investment in Rwanda is a direct action to bring about change across the whole mining industry.”
Francis Gatare, chief executive of Rwanda’s Mines, Petroleum and Gas Board, said the new system will help his country prove that its mineral exports are conflict-free.
“We have today been introduced to a new and innovative mineral traceability solution using blockchain technology. The initiative is already being implemented by PRG, one exporter from Rwanda,” he said.
Mining executives like Gatare say the cost of compliance is too high, and it’s all paid at the front end of the supply chain. They believe the OEM manufacturers at the end of the supply chain should pay more.
The cost-effective Circulor system should reduce this burden, and boost the price for proven conflict-free ore. That would spell more revenue for the Rwandan government, for mine operators, and hopefully for miners too.
In the future, Rwanda and Circulor plan to bring more mines onto the system. And Circulor is keen to extend the blockchain system to cover other minerals and other countries.
