openIDL Case Study

Download Printable Case Study

Engaging stakeholders in design thinking

From the beginning, AAIS invited stakeholders to take part in “design thinking” sessions to help develop a solution for their data problem.

Design thinking is a powerful tool to spark innovation, with roots that trace back to the 1950s. The process can help solve problems and build relationships by getting different stakeholders in the same room to share different perspectives. As stakeholders become invested in the process, they are more likely to buy into a proposed solution.

“The design process united the carriers and the regulators, and the end product— openIDL—has really resonated with both groups. Reception has been overwhelmingly positive,” says Zerkovich.

Early in the design thinking process, it became clear that AAIS couldn’t solve the data problem with its current technology.

The reporting issue was a fierce storm buffeting the whole industry. In fact, regulators were shocked when they learned how much time and money carriers were spending to answer their queries.

To move large blocks of data between entities, AAIS needed something more than clunky databases. Any proposed solution needed iron-clad security or no carrier would buy in. Since insurance is such a competitive industry, carriers needed to be absolutely certain that any data they shared with AAIS and regulators was completely anonymous.

As discussions progressed, the group raised the idea of using blockchain.

Seeking an affordable blockchain framework

While blockchain would allow carriers to maintain control of their data, there was one major roadblock: Commercial software products can be terribly expensive.

Licensing costs, annual support contracts, and transaction fees added up to costs so high they would lock out more than half the carriers AAIS wanted to help. The regulators would never agree to that.

Enter open source software.

Using open source accelerates development, by enabling companies to quickly access existing and tested code—instead of having to reinvent everything from the ground up.

“Open source blockchain technology was critical to building an affordable and accessible solution that even small insurance carriers can afford. A lot of these companies can’t afford $10,000 a year to participate in a blockchain network,” says Zerkovich. “And larger carriers can save millions of dollars in annual reporting costs using openIDL.”

Using an existing open source framework meant AAIS didn’t have to code a blockchain platform from scratch. The team could get on with building the higher-level components and interfaces for their system, which they named the Open Insurance Data Link (openIDL).

Zerkovich and her team wanted to create an efficient, secure and permissioned blockchain network to collect and share data. Their vision for openIDL was to streamline regulatory reporting, save costs, and provide useful insights for insurers, while gathering more timely and accurate data for regulators: a classic win-win.

Choosing a proven framework and development partner

AAIS considered three blockchain frameworks: Corda from R3, Ethereum, and Hyperledger Fabric. They chose Hyperledger Fabric from the Linux Foundation.

“Hyperledger was the only one that was truly open source and transparent,” says Zerkovich. “It makes solutions available as a baseline infrastructure, so that others add value on top of that.”

AAIS understood that leveraging the power of the open source community would let them focus their energy on building applications for members, not tinkering with blockchain technology.

“One of the reasons Hyperledger was so important to us was that the development community could anticipate the features we needed,” says Zerkovich. “We didn’t want to develop some weird component of a blockchain network; we just wanted it to do what we needed it to do. Hyperledger’s technology met our needs every single time.”

After AAIS picked a blockchain platform, it needed a development partner with all the skills and resources to bring openIDL to life.

They decided to partner with IBM because of the organization’s track record with Hyperledger Fabric and their expert team. After all, IBM contributed the original codebase that became Hyperledger Fabric.

With shared philosophies that included design thinking and agile development, AAIS and IBM developed and tested a prototype in record time. In a promising start for the system, “We were able to create the first prototype and test five million records in less than 90 days,” says Zerkovich.

Network architecture

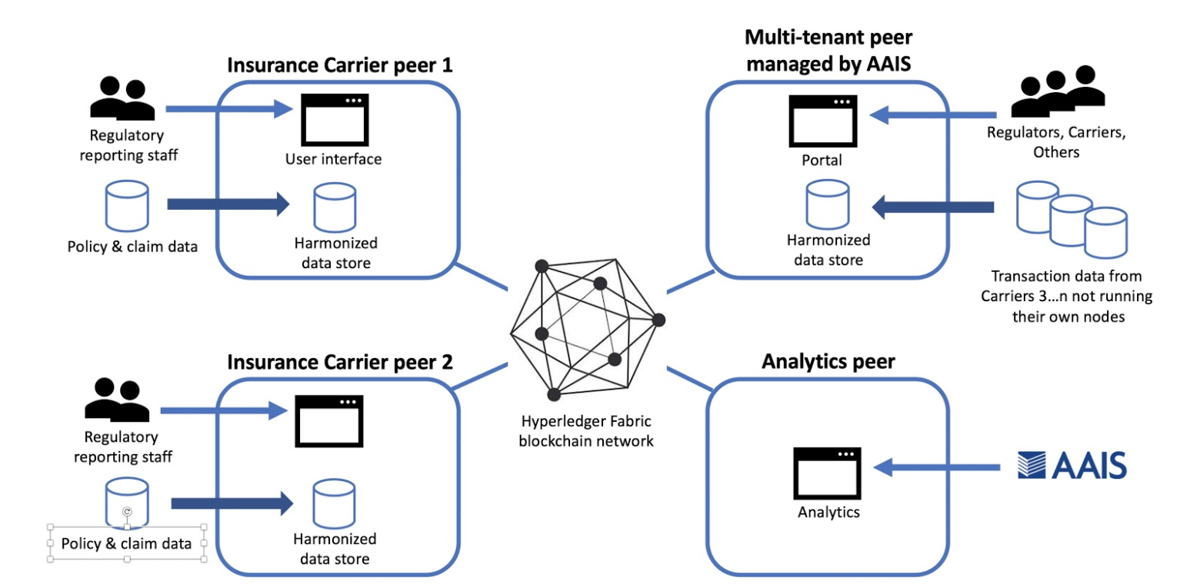

As shown in the system graphic, the openIDL network includes three different nodes:

• Insurance carrier peers in a single-tenant environment
• A multi-tenant environment managed by AAIS that provides access to carriers who don’t run their own nodes
• An analytics peer that pops up to publish extracted information, managed by AAIS

At the core of every node is the Hyperledger Fabric blockchain, along with the IBM Blockchain management tools.

One of the biggest resource challenges is harmonizing data from numerous sources both within and between carriers. Data ingested from carrier policies, claims, and transactions at any node is processed into a harmonized data store using the time-tested IBM Insurance Information Warehouse (IIW) standard to speed up the data management work.

Every company’s data is kept secure through a private channel on Hyperledger Fabric that no other insurer can see. Regulators can request data from insurers in their state, and insurers can review and answer these requests.

Ironically, AAIS’s previous role as the trusted intermediary to provide anonymity and quality has been eliminated by this new platform for collaboration and efficiency.

Insurers who aren’t ready to manage their own node use the multi-tenant environment managed by AAIS. The portal enables carriers, regulators, and other authorized users to browse data and view reports through a secure portal.

To help insurers spin up their own nodes, IBM created openIDL in a Box: a managed service offering everything an insurer needs to join the blockchain network.

This can be deployed through cloud providers AWS, Azure, or IBM Cloud or on-premises, all through the Red Hat OpenShift platform that uses Docker containers managed by Kubernetes. The whole system runs on Red Hat Enterprise Linux, and is usually ready to go in a couple of days, as soon as the carrier signs up with their cloud provider.

Adding value for everyone on the network

In 2018, openIDL went into production as the first blockchain network connecting data across the American insurance industry. And feedback from carriers and regulators has been positive.

AAIS continues to refine the blockchain platform, engaging their stakeholders in quarterly design thinking sessions. These sessions underscore the association’s role as a neutral third party that will oversee the blockchain network and make sure it continues to benefit insurance carriers and regulators for years to come.

openIDL working groups are meeting for different lines such as auto, flood, homeowners, and reinsurance. Eventually each working group may suggest a data model the network can use to streamline their reporting even more.

Zerkovich realizes that openIDL will catalyze other changes. For example, for staff who do regulatory reporting, Zerkovich sees a new world of opportunity in web analytics and refining the customer experience.

Moving forward, AAIS will let openIDL determine how the technology evolves. The organization is exploring how it might connect to other blockchain networks and how it might fuel development of new products, services, and apps to benefit their members and the insurance industry as a whole.
